2520-030-00

Product information

Pool and Spa Management
Analogue Output Module AOM for transmitting measured values or control signals to any external systems

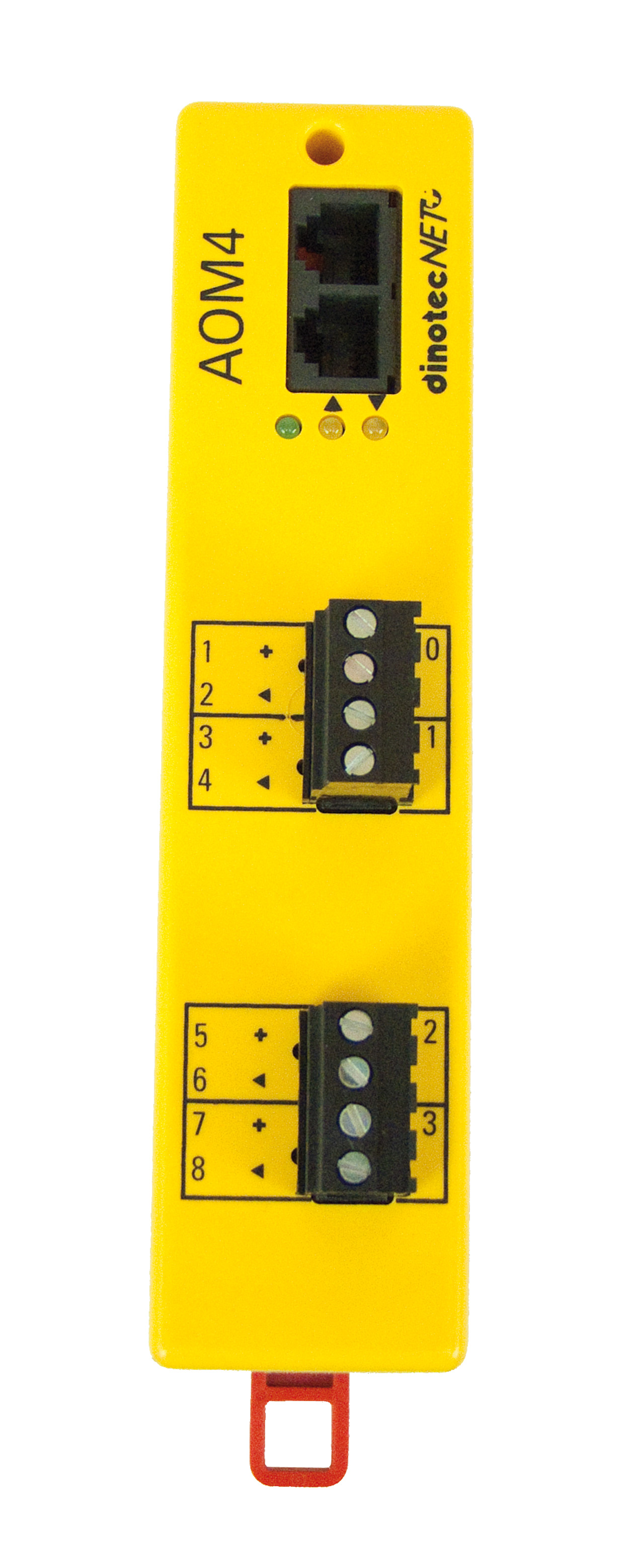

AOM4 - Analogue Output Module
with four electrically isolated 0(4)-20mA current sources
Art. no.: 2520-030-00

Short description

Analog output module AOM4 with four electrically isolated current sources 0(4)-20mA, for transmitting measured values or control signals to any external systems. Simple and cost-effective installation thanks to plug-in terminal blocks. Increased system safety through galvanic isolation from the system bus as well as between the current sources themselves. The outputs are short-circuit-proof.

Description

The AOM4 analogue output module features four electrically isolated analogue current sources, each capable of supplying currents of 0 at a resistive load (max. 1000 Ohm)
(can deliver 4mA) up to +20mA. The four channels are isolated from one another and from the bus, which means that each channel can be operated at different potentials.
Ground loops are avoided. All outputs are short-circuit-proof. The power supply is provided via the system bus. Three diagnostic LEDs indicate the
indicates the correct operating voltage as well as the reception and transmission of bus data. Installation is via plug-in terminal blocks. The module is suitable for mounting on 35 mm DIN mounting rails and is supplied with two 4-pole plug-in terminal blocks. The module is integrated into the system via the dinotecNET+ system.

Technical data

	Function;	Electrical characteristics
1	dinotecNET+ system bus	RJ12 socket (6-6)
	Power supply (bus)	20V- 30V DC (nominal 24V)
	Maximum power consumption	2.5W
	Standard device address RM5 3	3 (on delivery)
2	Status display	Left bus voltage OK Centre module transmits Right bus is active
3/4	Analogue Out0	potential-free current output 0(4) to 20 mA (load <1000Ω)
	Analog Out1	volt-free current output 0(4) to 20 mA (load <1000Ω )
5/6	Analog Out3	Potential-free current output 0(4) to 20 mA (burden <1000Ω )
	Analog Out4	voltage-free current output 0(4) to 20 mA (burden <1000Ω )

Mechanical characteristics NET+ modules
Conductor cross-section connection terminals	0.25 - 2.5 mm²
Tightening torque of the clamping screws	0.5 Nm max.
Enclosure for DIN rail mounting (Standard EN50022 profile 35mm x 7,5mm)	Plastic 40x155x70 mm³ W/D/H
Ambient temperature	0 to 50° C
Protection rating	IP 20
Weight	0.250 kg

Supplementary information

This module is a component of the dinotecNET+ pool and spa management system. Ask your specialist dealer about additional modules and field devices for a wide range of applications.
